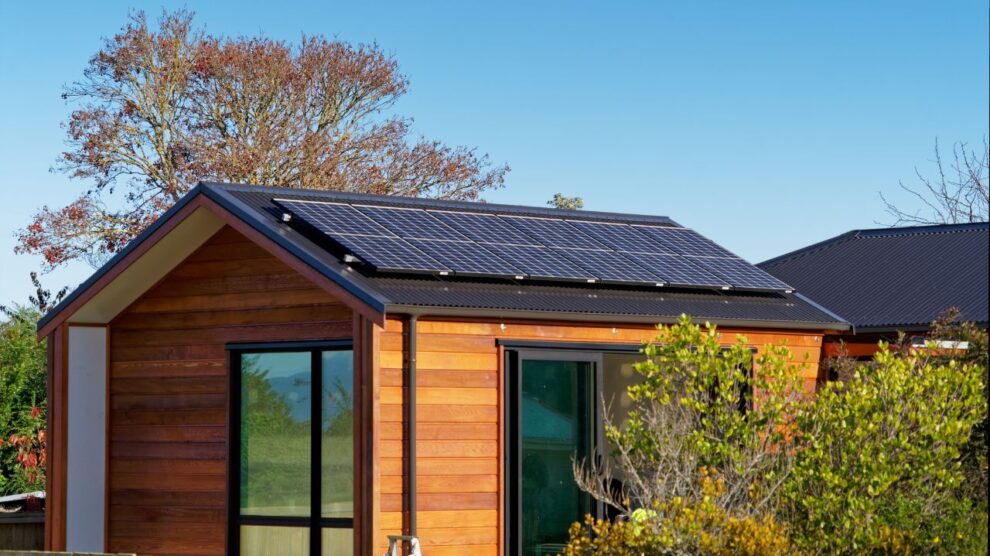

Off grid home solar systems enable energy independence, but optimizing their performance requires innovative management strategies such as peak shaving and load shifting. Peak shaving reduces instantaneous high power demands that stress batteries and inverters, while load shifting shifts discretionary energy use to times when solar generation is plentiful. Together, these strategies ensure that off-grid home solar systems operate efficiently, extend the life of their components, and maximize their power generation.
Peak Shaving in Off-Grid Home Solar Systems
To begin peak shaving in an off grid home solar system, first analyze the home’s instantaneous power consumption using a real-time monitor or smart meter. Identify appliances and activities that cause peaks, such as electric water heaters (4-5 kW), well pumps (2-3 kW), or air conditioners (3-6 kW). Once you have the demand curve, set a peak threshold based on the system inverter rating minus a safety margin. For example, for a 5 kW inverter, set a limit of 4.5 kW.
Next, configure the energy management system or programmable relays to shed or delay noncritical loads when total demand approaches this threshold. For example, if the starting current of the well pump exceeds 4.5 kW, the EMS can temporarily shut down the water heater or delay the dishwasher cycle. By shaving these peaks, you can prevent inverter overload and reduce the depth of battery discharge, thereby protecting the inverter and battery bank in the off grid solar power system.
Load Shifting in Off-Grid Home Solar System
Load shifting in off-grid home solar systems refers to adjusting flexible energy consumption to coincide with peak solar output hours (usually midday) when the PV array is producing the most power. To implement load shifting, first categorize your loads as “shiftable,” “semi-shiftable,” and “non-shiftable.” Next, use your EMS’s scheduling features or time-sharing relays to automatically run shiftable appliances during peak solar generation hours, such as 10 a.m. to 2 p.m. For example, programming your dishwasher to start at 11 a.m. ensures it uses clean solar power instead of stored battery power. Also, configure your water heater’s thermostat to ramp up when the sun is brightest, effectively storing thermal energy instead of drawing from the battery later. This strategic scheduling reduces reliance on battery reserves and extends off-grid autonomy during cloudy or evening hours.
Scheduling High-Drain Appliances
Effectively scheduling high-drain appliances is a core component of off grid home solar system load shifting. Appliances such as washers, dryers, and electric vehicle chargers should be set on timers or integrated smart plugs. Many modern appliances have built-in delayed start features—enable these and put them to run during peak solar windows. If your appliances lack native scheduling features, you can use a scheduler that works with your EMS. Transform it with industrial-grade programmable relays or smart circuit breakers that communicate.
For greater granularity, use smart panels with submetering to track each circuit and create custom schedules through the solar system’s mobile app. By delegating load scheduling to an automated system, you can ensure that energy-intensive tasks don’t inadvertently coincide with low-production periods, smoothing demand curves over 24 hours.
Integrated Energy Storage and Smart Controls
A robust off-grid home solar system relies on seamless integration between battery energy storage, inverters, and intelligent controllers for peak regulation and load shifting. Choose an inverter/charger with built-in load management features, such as programmable relay outputs that disconnect or reconnect loads based on real-time power flows. Pair it with a battery management system, and the BMS can provide state-of-charge data to your energy management system.
When combined with an innovative energy management platform, these components can predict solar generation based on weather data, automatically adjust charging parameters, and enforce load-shedding thresholds. For example, if dark clouds suddenly appear, the system can preemptively reduce noncritical loads to maintain battery SoC Until solar power is restored. By relying on advanced controls rather than manual switching, your off grid solar power system can achieve optimal energy utilization with minimal user intervention.
Monitoring and Continuous Optimization
Implementing peak shaving and load shifting is not a one-time setup; it requires continuous monitoring and ongoing improvement. Leverage the data logging capabilities of your off-grid home solar system to capture kWh readings, battery voltage, and load status at 5-minute intervals and analyze patterns over weeks or months. Identify new peak events or changing consumption trends, such as the introduction of new appliances or seasonal behavior changes. Use these insights to adjust your EMS Plan, adjust peak thresholds, and fine-tune battery reserve targets.
Update inverter and controller firmware regularly to benefit from improved load management algorithms. Additionally, review your load profile quarterly to ensure it aligns with changing household demand and that your peak shaving and load-shifting strategies remain effective, closely matching actual off-grid home solar system usage.
Mastering Peak Shaving and Load Shifting
Mastering peak shaving and load shifting techniques can improve the performance and resilience of any off-grid home solar system. By systematically assessing your load profile, implementing threshold-based curtailment, scheduling high-drain equipment during peak solar hours, and integrating advanced battery and inverter controls, you can significantly reduce your reliance on storage, extend battery life, and maintain uninterrupted power.
